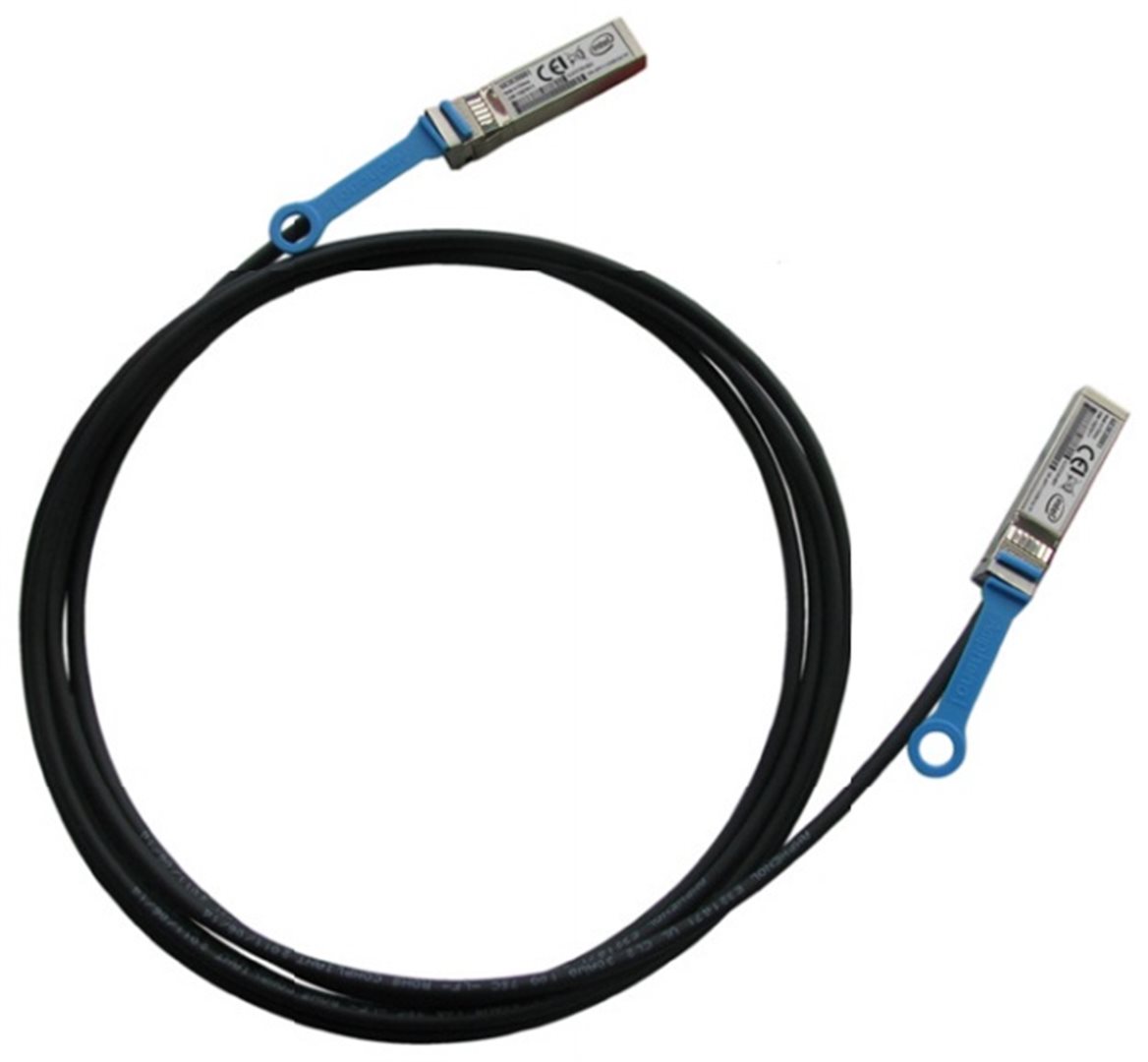

Intel Twinaxial Network Cable SFP+ 1M XDACBL1M

Intel® Ethernet SFP+ Twinaxial Cable, 1 meter XDACBL1M

SPECIFICATIONS
Storage Temperature Range
• -40 – 80 °C

Operating Temperature Range
• -40 – 80 °C

Operating Humidity Range
• 0 – 80 %

Supply Voltage
• Min. 2.95, TYP. 3.3, Max. 3.6 V

Supply Current (per cable end)
• 100 µA

Power Consumption
• 0.4 mW

Data Rate
• Max. 11.3 Gbps

TRANSMITTER
Differential Input Voltage Swing
• Min. 300 mVp-p

Differential Input Return Loss
• -10 dB @ 5 GHz

RECEIVER
Differential Output Return Loss
• -10 dB @ 5 GHz

Voltage Modulate Amplitude Loss
• 4.5 dBe

VMA Loss to Crosstalk Ratio
• 32.5 dB

Waveform Dispersion Penalty
• 6.8 dBe

CABLE
Cable Differential Impedance
• TYP. 100, Max. 105 ohm
